SKU: DJIEO4GS

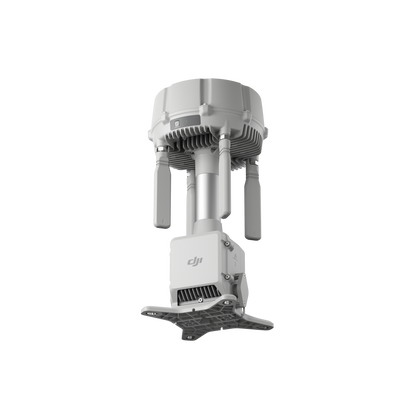

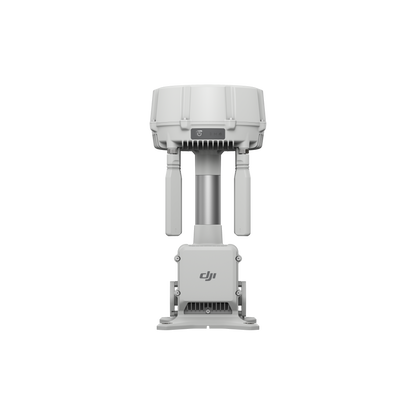

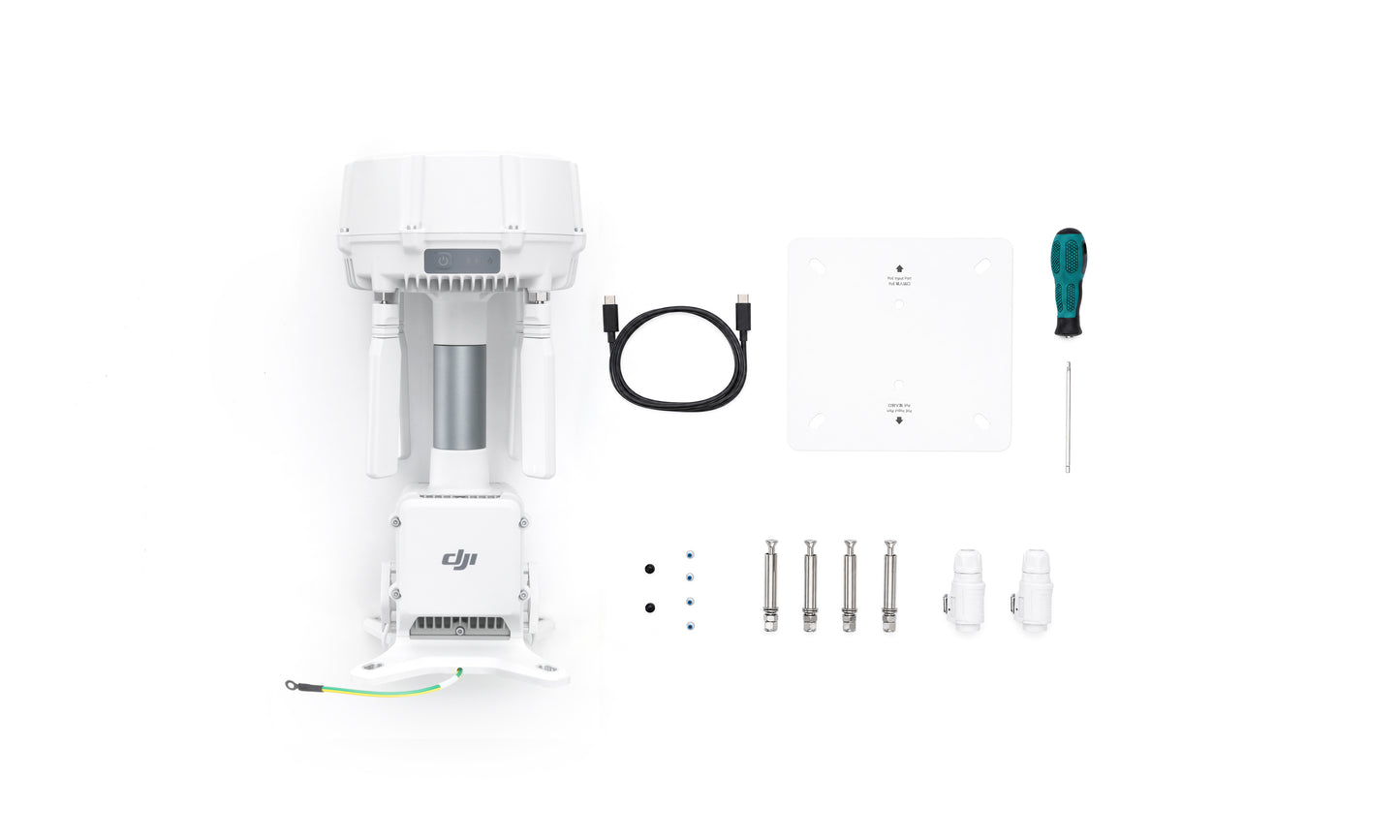

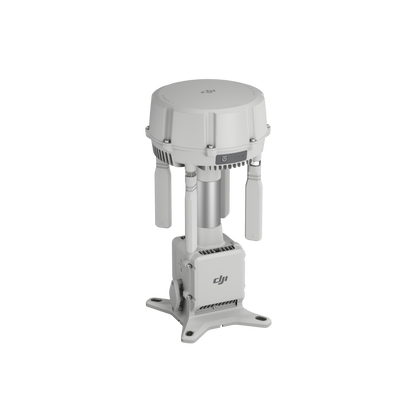

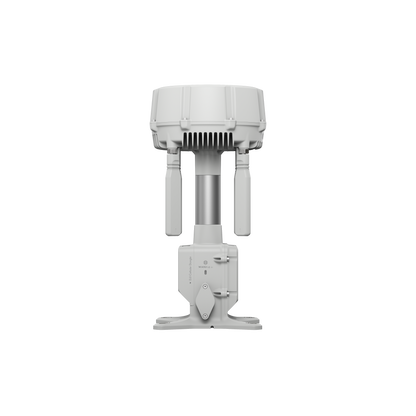

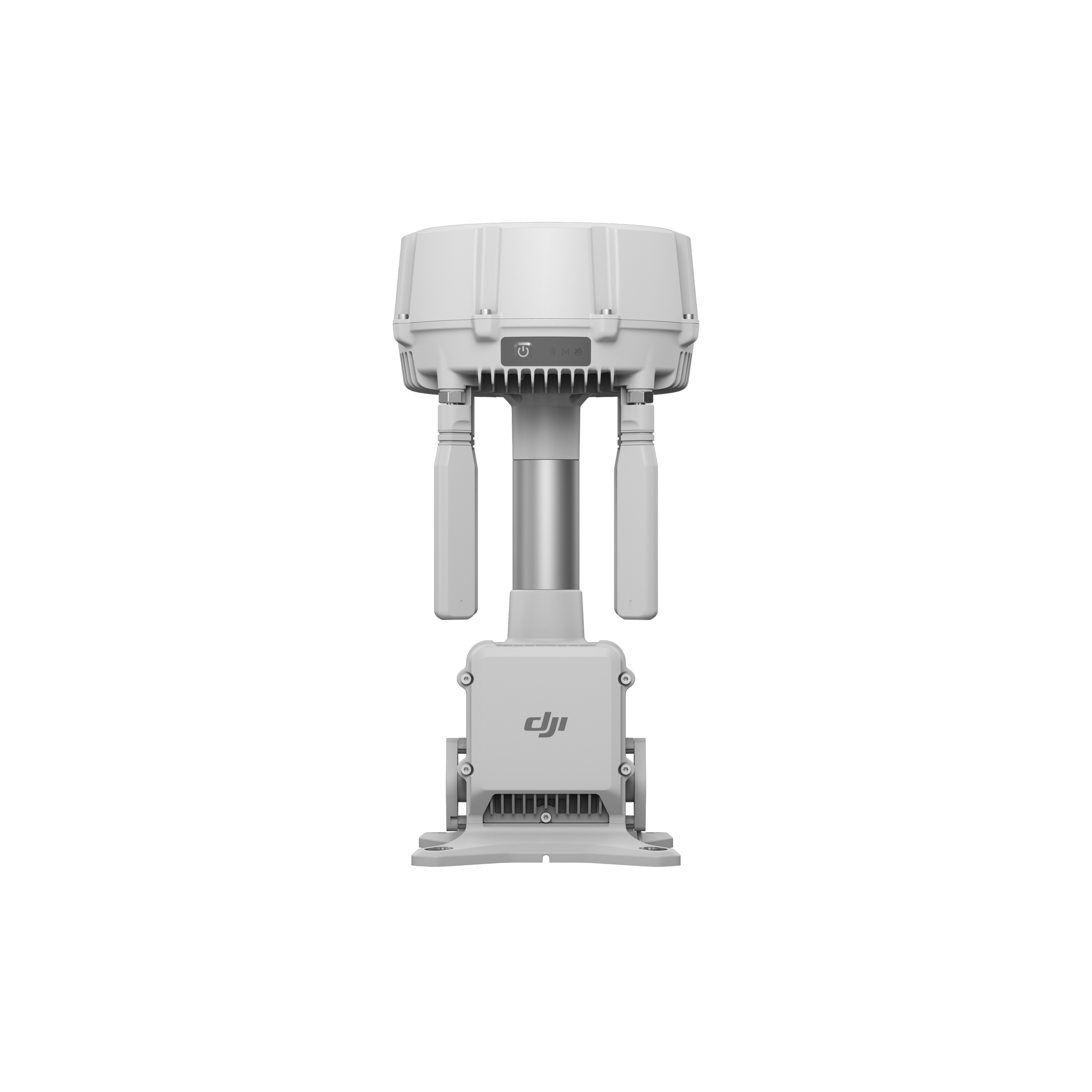

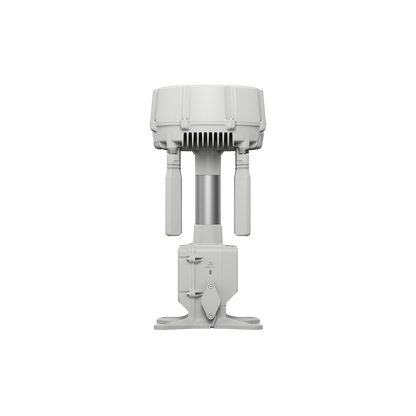

DJI O4 Ground Station

Name: DJI O4 Ground Station
Brand: Aviation Systems Group
SKU: DJIEO4GS
Price: 1567.00 GBP
Availability: InStock

DJI O4 Ground Station

£1,567.00

Sale Sold out

Shipping calculated at checkout.

The O4 Ground Station is DJI's long-range transmission solution that extends communications coverage for the DJI Dock 3's enterprise drone operations, enabling real-time video, remote control, and reliable connectivity in both networked and off-grid environments.

Full Description

Training - Receive support from our in-house instructor team. All our training is face-to-face - tuition for individuals or organisations training multiple remote pilots.
Dedicated Survey Assistance - our DJI Dock 3 Certified Solutions team and survey trained and experienced team for wrap around hardware/software assistance.
DJI Care Enterprise (Plus) cover for is also available, enabling an unlimited number of repairs within the coverage period (Subject to DJI T&C's)
ASG Support is included, providing a range of complementary services. For a wider support package, tailored to complex operations, ask about our Managed Service option.
ASG's highly experienced team is here to support you, covering maintenance and equipment support, training, DJI Certified Delivery and Solutions engineers, SORA / regulatory consultancy.

What This Actually Changes

Before:

UAV range limited by direct link
Signal drops in urban / obstructed environments
Missions constrained by coverage gaps

After:

Distributed coverage network
Reliable BVLOS execution
Scalable drone infrastructure

Why ASG Supplies This System

We don’t sell catalogue items—we supply operational capability.

UK-based enterprise UAS specialists
Deployment-led advice (not box sales)
Integration support with DJI Dock / FlightHub ecosystems
Operational and compliance alignment

Deploy infrastructure, not guesswork. Contact ASG to design your transmission architecture

View full details

frequently asked questions

DJI O4 Ground Station

Does the O4 Ground Station replace the D-RTK 3?

The DJI O4 Ground Station replaces the D-RTK 3 Relay Fixed Deployment Version only. It does not replace the standard D-RTK 3 used for RTK survey and positioning workflows.

Here's how to think about it:

D-RTK 3 → positioning and survey accuracy product
O4 Ground Station → communication, signal coverage, and remote operations product

If you're a surveyor using D-RTK 3 for mapping and RTK corrections, the O4 Ground Station is not your upgrade path. If you're deploying Dock 3 infrastructure, running FlightHub 2 workflows, or need fixed-site signal extension — the O4 Ground Station is what you need.
The O4 Ground Station also brings significant improvements over the D-RTK 3 Relay Fixed Deployment Version:

New Gateway Mode (the D-RTK 3 relay version only supported relay mode)
Sub-2G frequency band support (in addition to 2.4, 5.2, and 5.8 GHz)
Smart low-power standby mode (~7W when no aircraft is connected)
IP camera connectivity via ONVIF and GB/T 28181 protocols
Third-party integration via ESDK 2.0

Which aircraft and docks are compatible with the O4 Ground Station?

Compatibility depends on which operating mode you're using:
Gateway Mode:

DJI Dock 3

Relay Mode:

DJI Dock 3
DJI Matrice 400
DJI Matrice 4E
DJI Matrice 4T
DJI Matrice 4D / 4TD (with DJI RC Plus 2 Enterprise)
DJI FlyCart 100

Important restrictions to be aware of:

Relay Mode is unavailable in countries or regions without 5 GHz frequency support. Check local regulations before planning a deployment.
Sub-2G band support and multi-band auto-switching are only available when using the O4 Ground Station with the Matrice 400.
The headline 40 km relay range is achieved specifically when paired with the Matrice 400.

What is the difference between Gateway Mode and Relay Mode?

These are two fundamentally different operating modes — and choosing the wrong one will limit your deployment.
Gateway Mode (Cloud-Connected)
The O4 Ground Station connects directly to DJI FlightHub 2 via Ethernet or the DJI Cellular Dongle 2 (4G). This decouples the ground station from the dock — it no longer needs to sit within line-of-sight of a specific Dock 3. You place it wherever coverage is needed, and it routes video and control data through the cloud. Coverage extends up to ~30 km when paired with Dock 3.
Gateway Mode also enables:
Signal Map — FlightHub 2 uses flight data to highlight weak coverage zones, so you can reposition stations precisely
Virtual Cockpit — operators can manually override preset routes from within FlightHub 2, anywhere within the station's coverage area

Relay Mode (Infrastructure-Free)

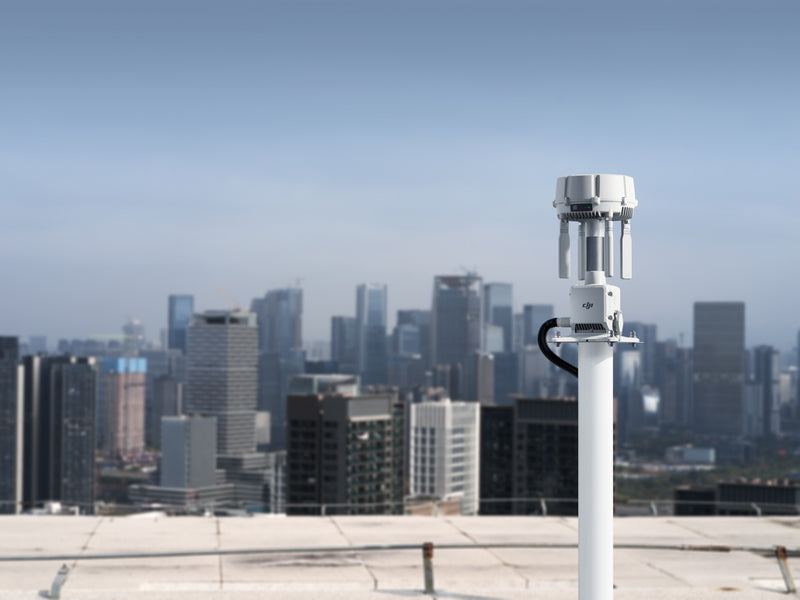

No internet connection required. The O4 Ground Station is positioned at an elevated location (tower, rooftop, ridge) and acts as a physical RF relay, extending signal through terrain, structures, or urban obstruction. Range extends up to 40 km when paired with the Matrice 400.

In simple terms:

Gateway Mode = cloud-routed, dock-independent, ideal for networked multi-site operations
Relay Mode = offline RF extension, ideal for remote or obstructed environments with no connectivity.
