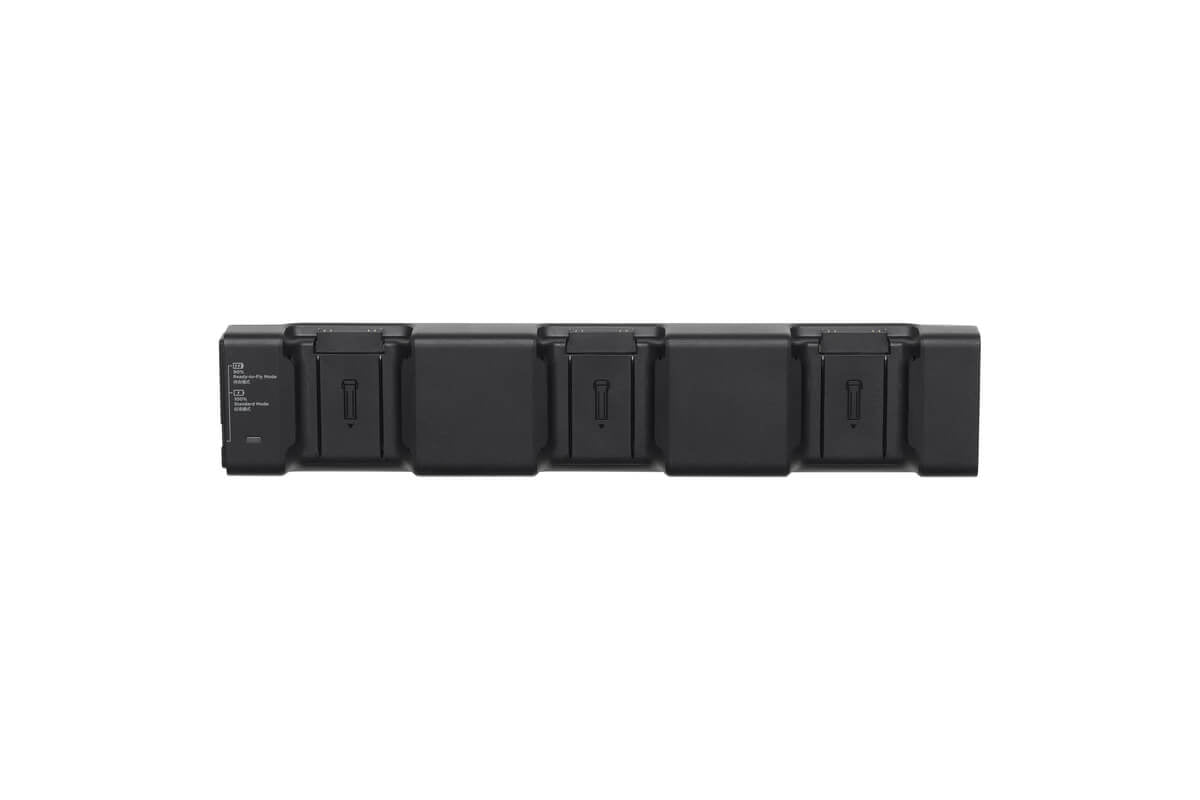

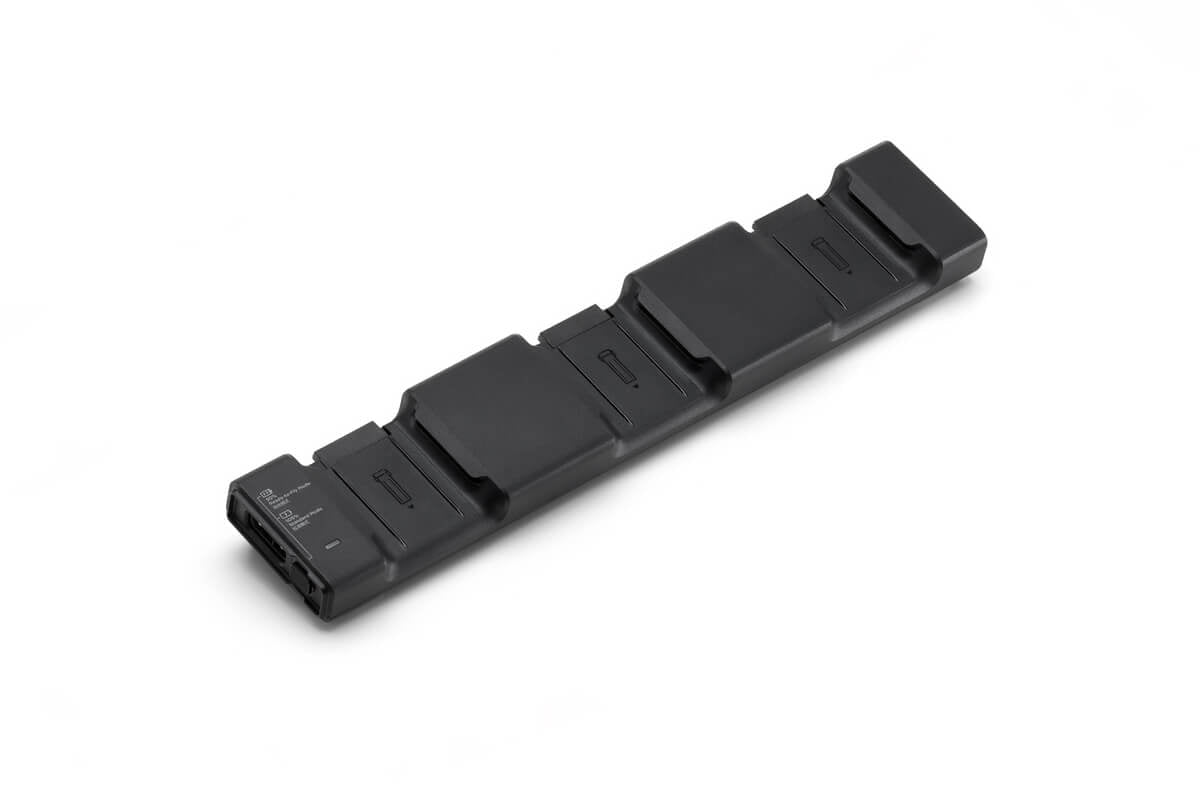

This high speed charging hub supersedes the standard hub included with the M4 Series combos. It much be paired with either the DJI 240W Power Adapter or Power 1000 / 2000 to charge up to three Intelligent Flight Batteries in sequence from high to low power levels. The charging hub supports both Standard Mode and Ready-to-Fly Mode. Standard Mode charges each battery to 100% sequentially. Ready-to-Fly Mode charges each battery to 90% sequentially and maintains that level for quick deployment.
Speed Comparison
| System |
Max Power |
10% to 100% FULL Charge |
20% to 90% PARTIAL Charge |
| Standard Hub |
100W |
~78 mins per batt |
~60 mins per batt |
| New High Speed Hub |
200W |
~50 mins per batt |
~30-40 mins per batt |
In the Box
Charging Hub × 1

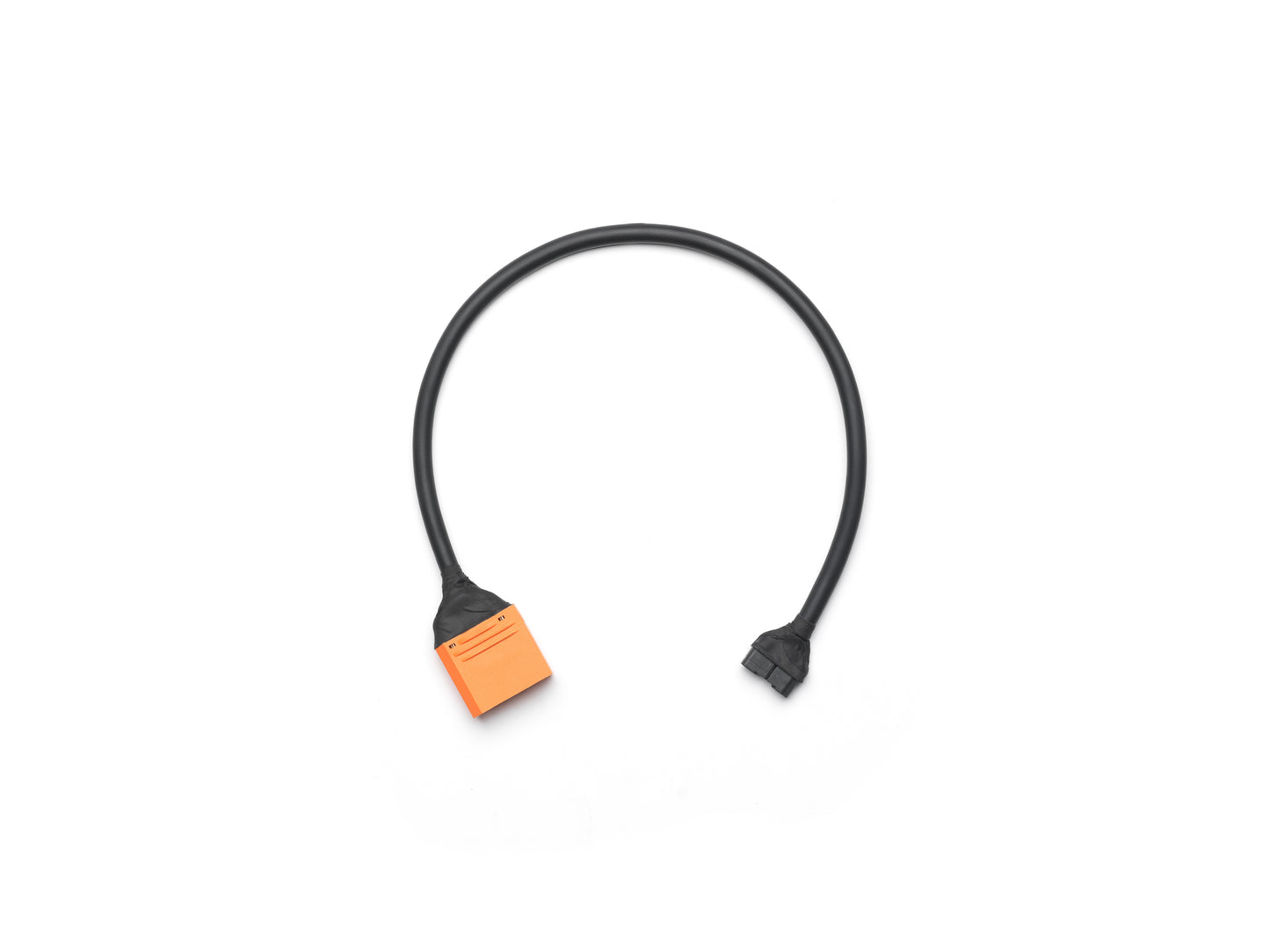

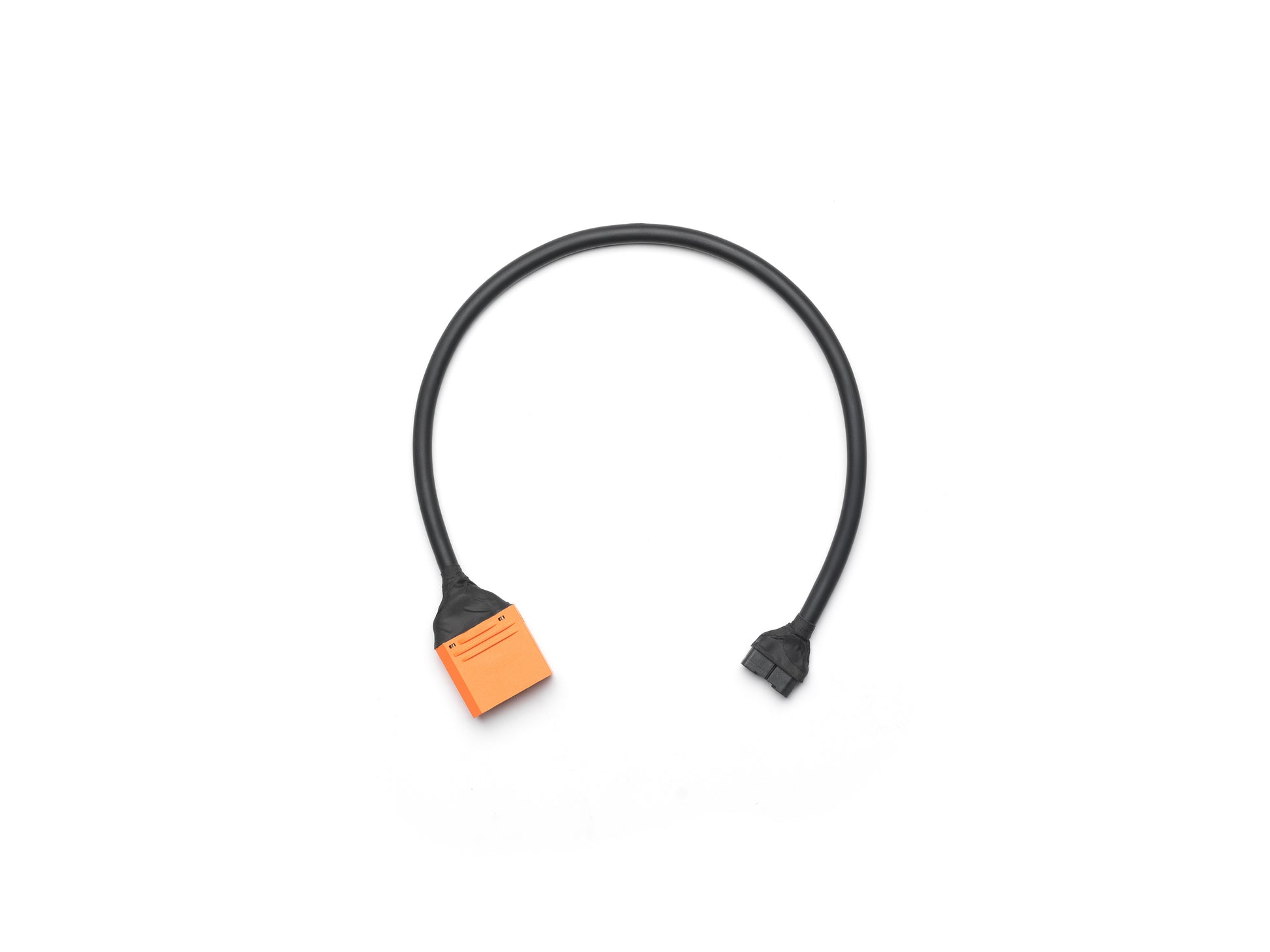

SDC Fast Charge Cable × 1
Specifications
Model: CHX345-200
Compatible with DJI 240W Portable Charger (model: CDX230-240)
Compatible with battery model BPX345-6741-14.76
Operating Temperature: 5° to 40° C (41° to 104° F)
Input: 11.2-17 V, max 12.1 A
Tips
1. The DJI 240W Portable Charger (model: CDX230-240) is required when using the charging hub to charge Intelligent Flight Batteries.
2. The charging hub is only compatible with the DJI Matrice 4 Series Intelligent Flight Battery. DO NOT use the charging hub with other battery models.
3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.
4. DO NOT attempt to touch the metal terminals on the battery ports. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
